Introduction to Data Communications (S1, 2014)

Routing in Switched Networks

Lecture Material

Lecture Notes: View, Print, Source

Readings

Stallings: chapter 12
Forouzan: chapter 22
Kurose: chapter 4

Videos

This year: Introduction to Routing, Routing and Flooding, Summary of Flooding and Routing
Last year: Part 1, Part 2, Part 3

Notes

Notes from the lecture are below. Hover over the image to see a description; right-click and view the image to zoom in. Alternatively you can download a zip archive of all the image or a printable PDF of the notes.

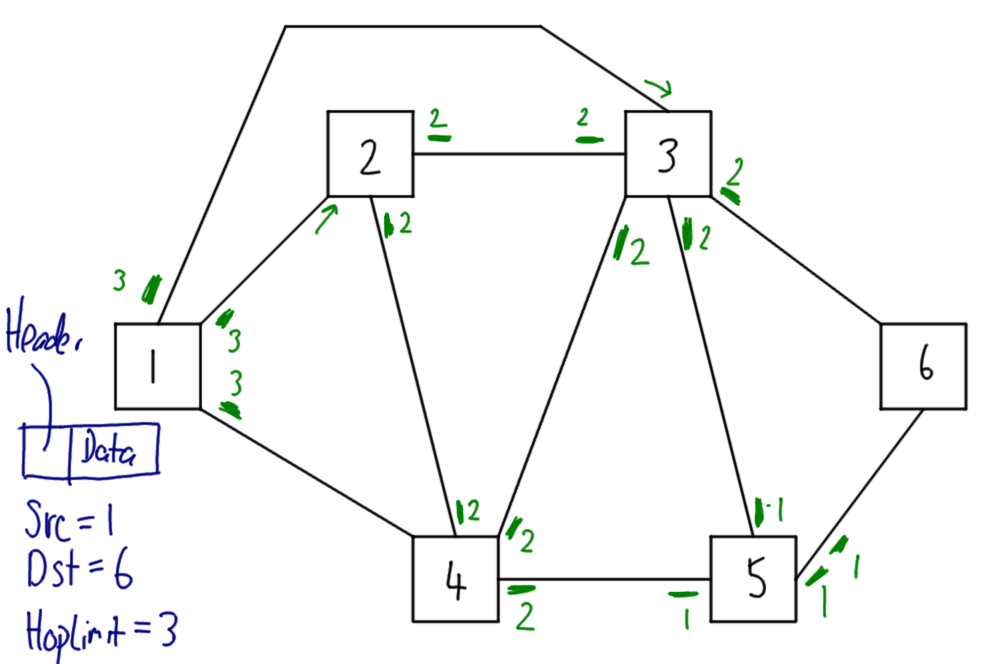

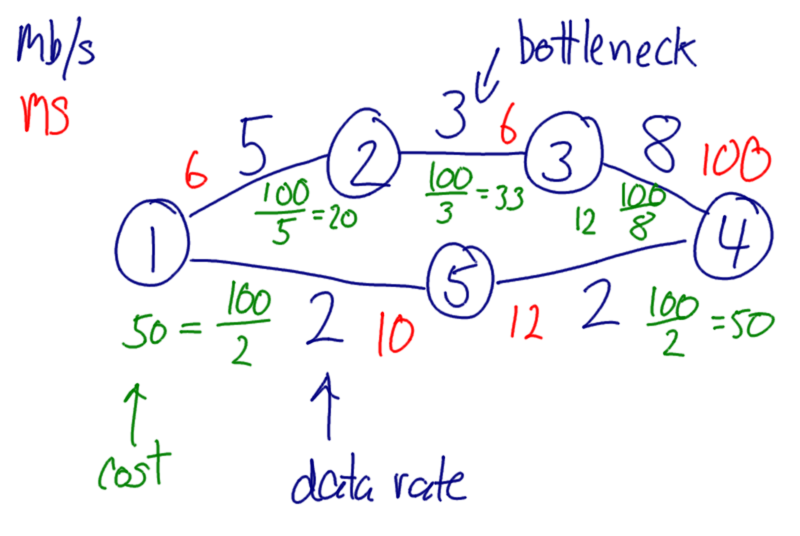

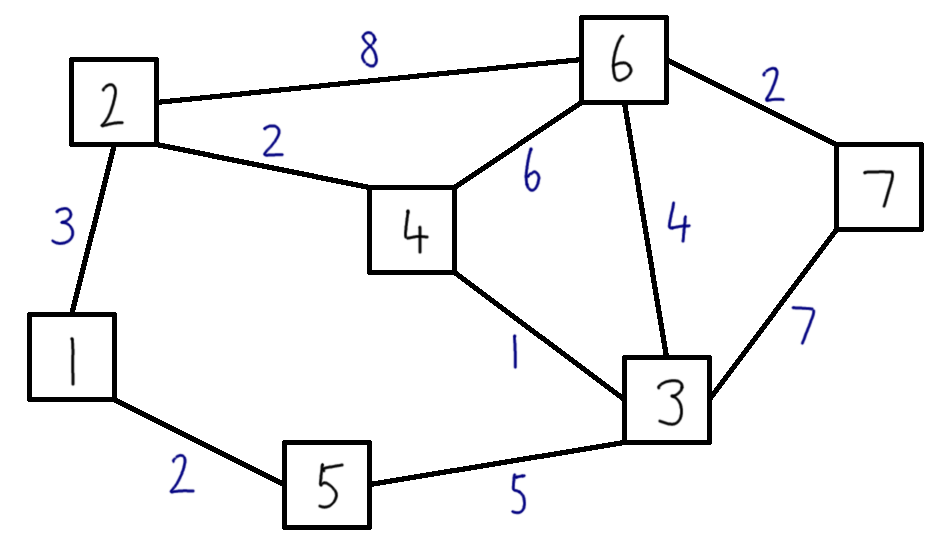

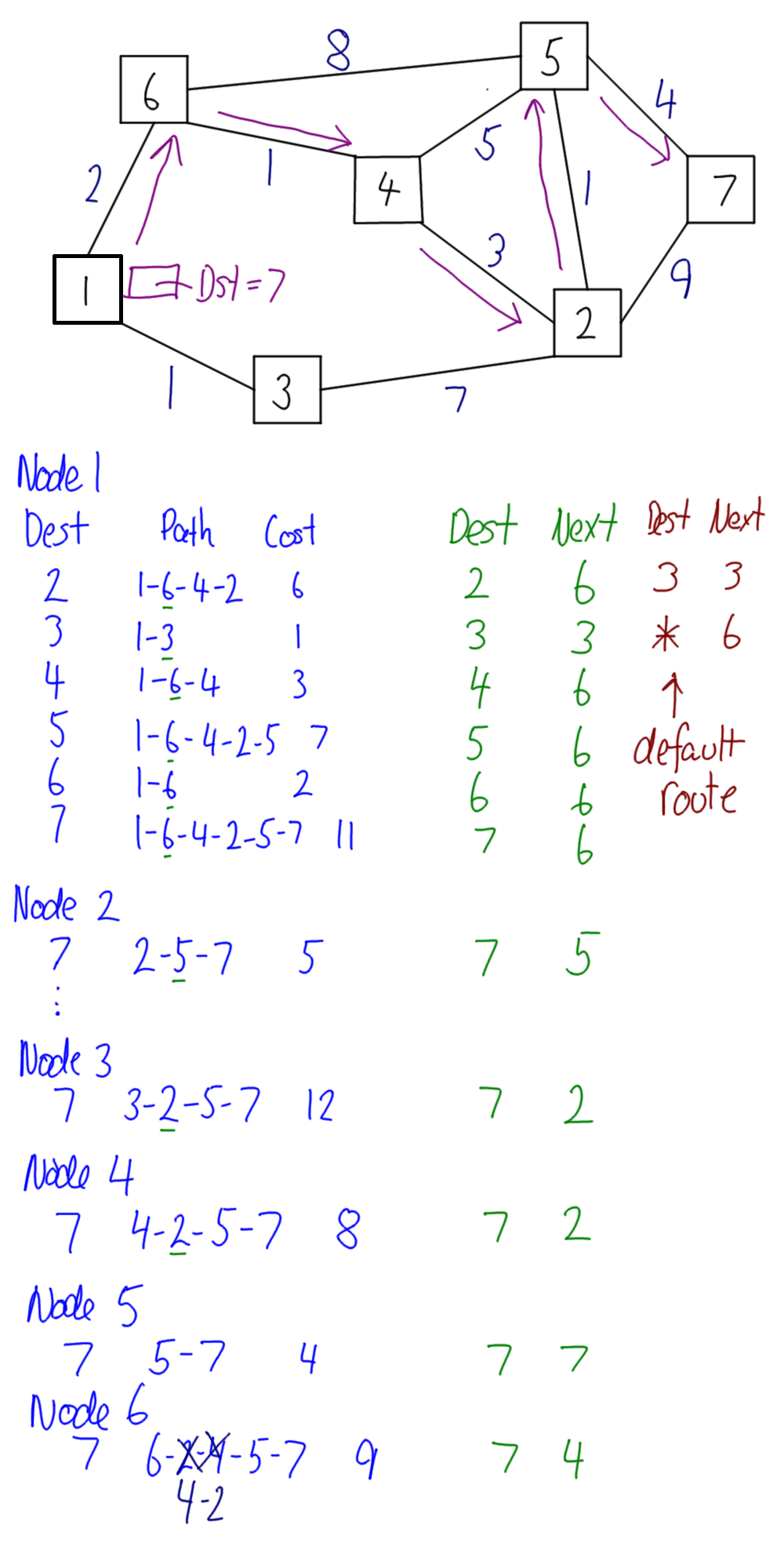

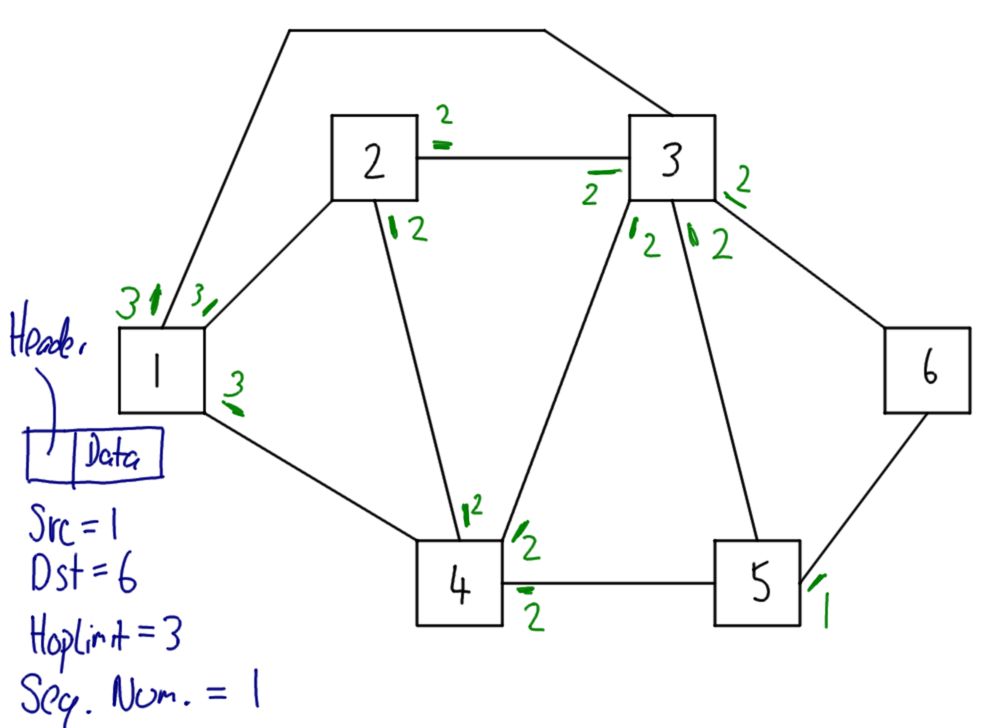

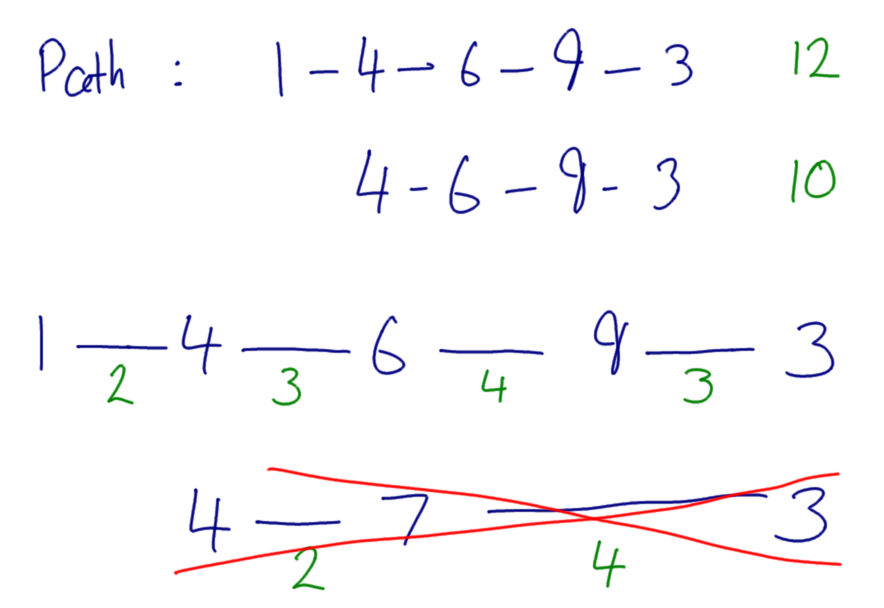

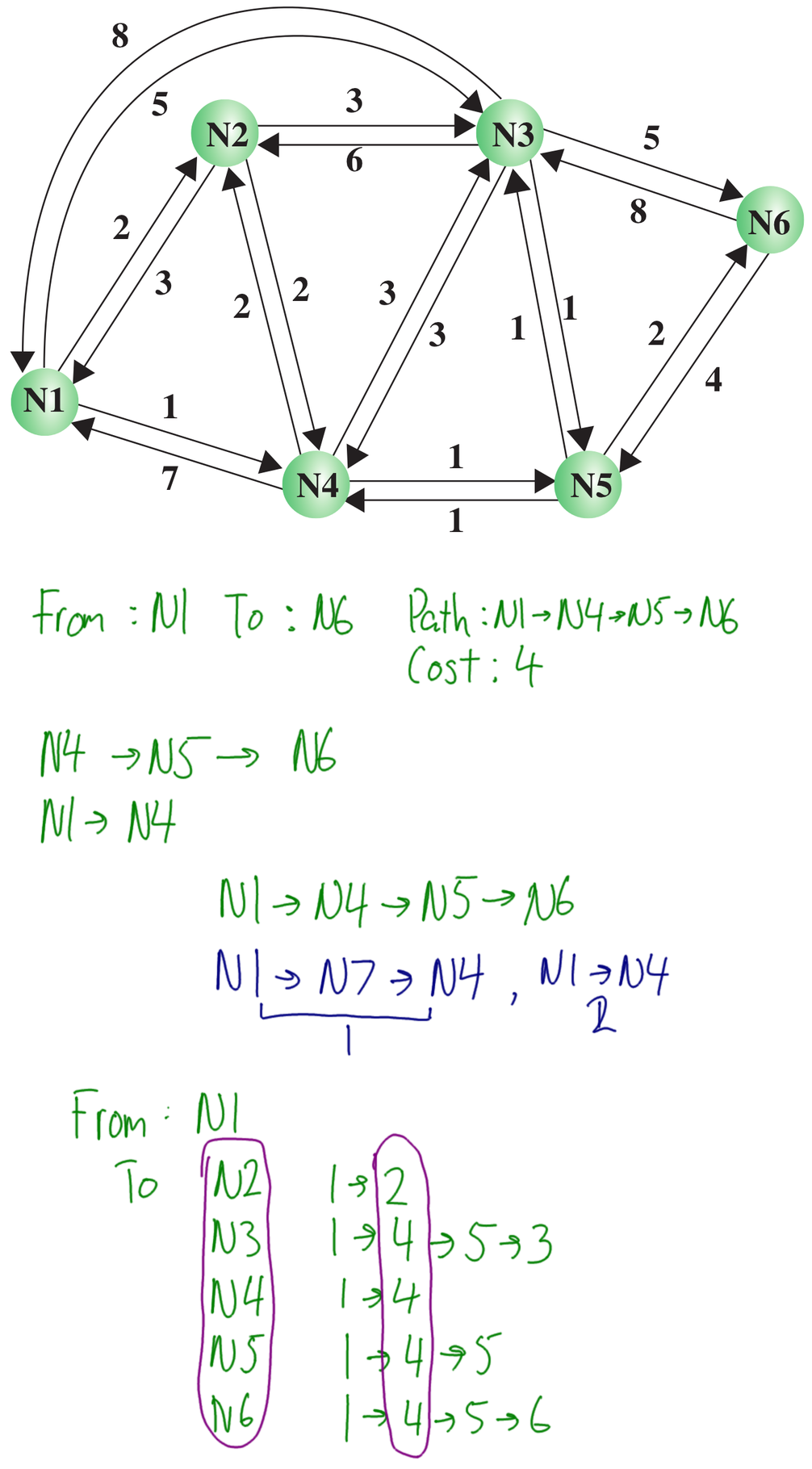

Example of Network Topology Routing Metrics Least Cost Paths and Subpaths Least Cost Routes in Example Network Creating Routing Tables Flooding with a Hop Limit Flooding with a Sequence Number
