Security and Cryptography (S2, 2015)

Block Ciphers and DES

Lecture Material

Lecture Notes: View, Print

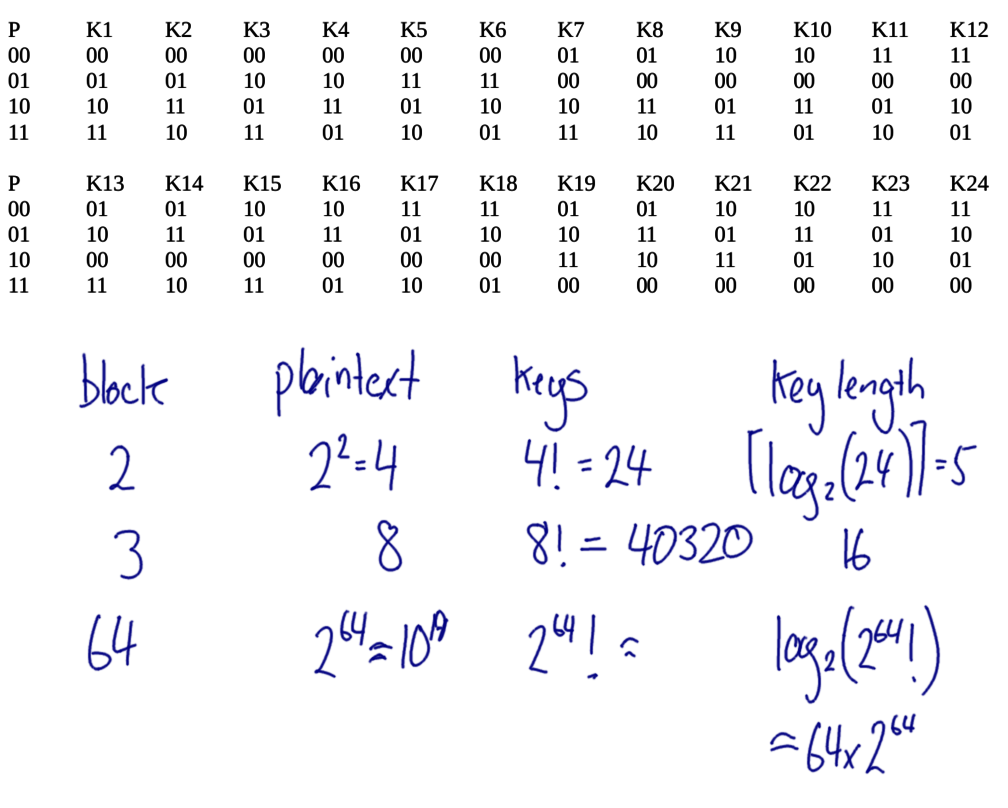

Ideal 2-bit Block Cipher Example

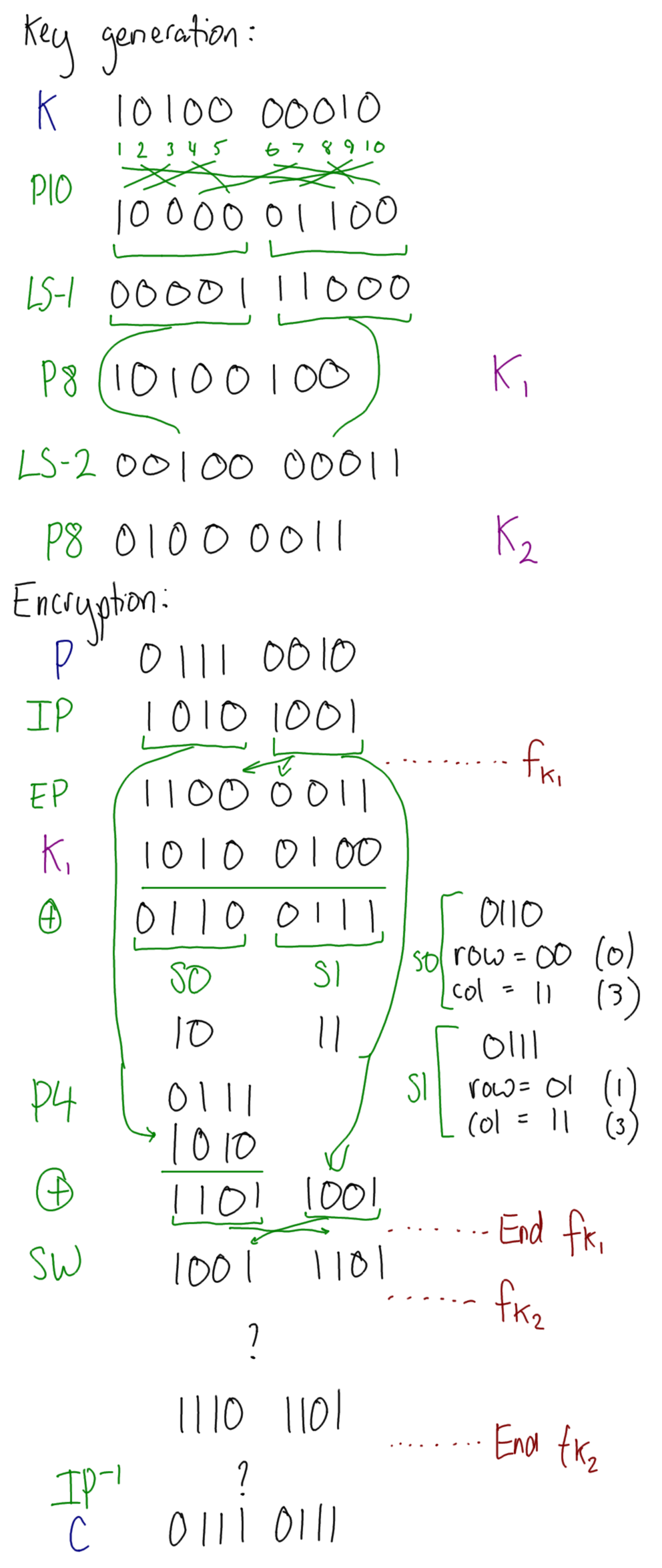

Simplified DES Example
Simplified AES Example

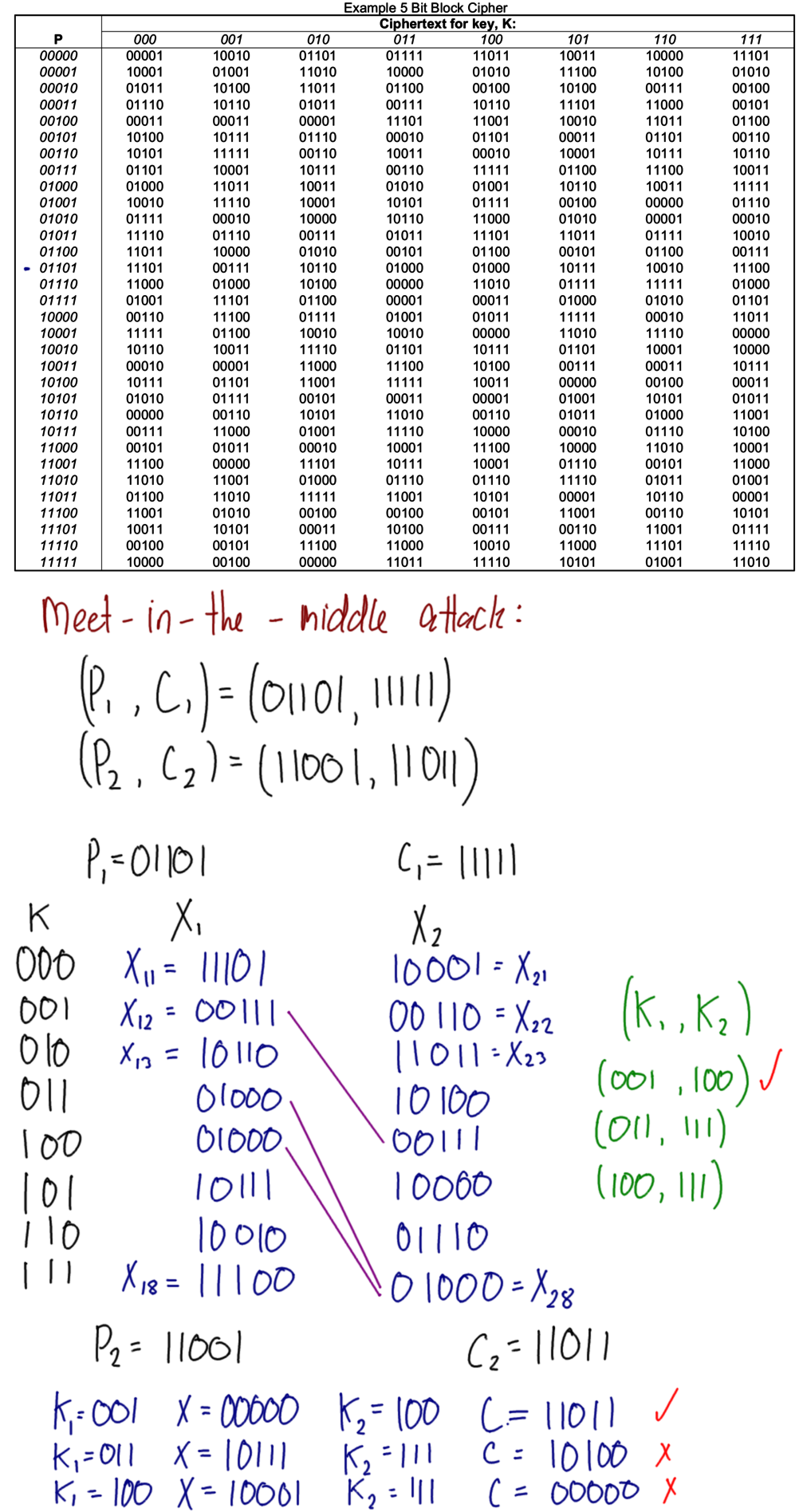

Block Cipher Meet-in-the-Middle Attack Example
5 bit Block Cipher for another example of Meet-in-the-Middle Attack
Example Uses of Ciphers: View, Print
Brute Force of DES and AES: View, Print

Readings

Cryptography and Network Security by Stallings: chapter 3
Computer Security by Stallings and Brown: chapter 20, 2
Cryptography and Network Security by Forouzan: chapter 5/6
Network Security by Kaufman, Perlman and Speciner: chapter 3
Security Engineering by Anderson: chapter 5
Handbook of Applied Cryptography by Menezes, van Oorschot and Vanstone: chapter 7

Videos

Last year: Part 1, Part 2, Part 3
Demo: DES Encryption using OpenSSL, including examples of openssl, /dev/urandom and xxd in Linux.

Notes

Hover over images to see the title; right-click and view the image to zoom in. Alternatively, download a zip archive with all the images or a printable PDF of the notes. You can also download a printable PDF of the notes from last year.

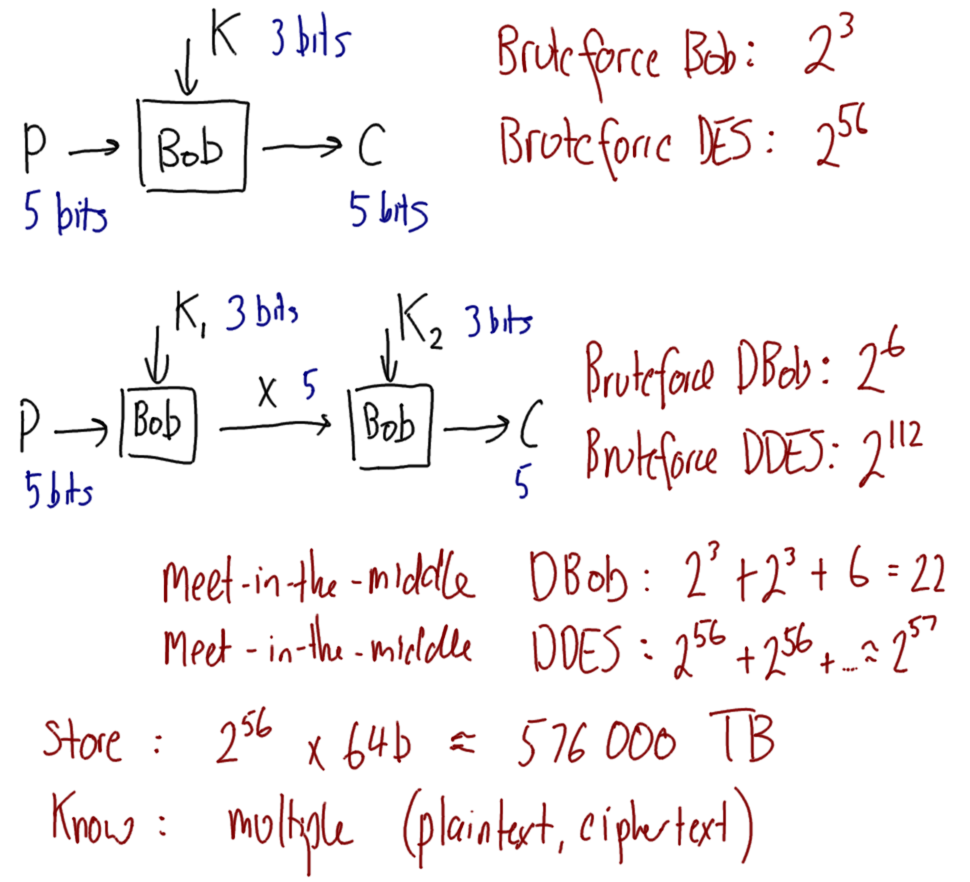

Limitations of Ideal Block Cipher Simplified DES Example Meet-in-the-Middle Attack MITM on Double DES
