Security and Cryptography (S2, 2013)

Block Ciphers and DES

Lecture Material




Hover over images to see the title; right-click and view the image to zoom in. Alternatively, download a zip archive with all the images or a printable PDF of the notes.

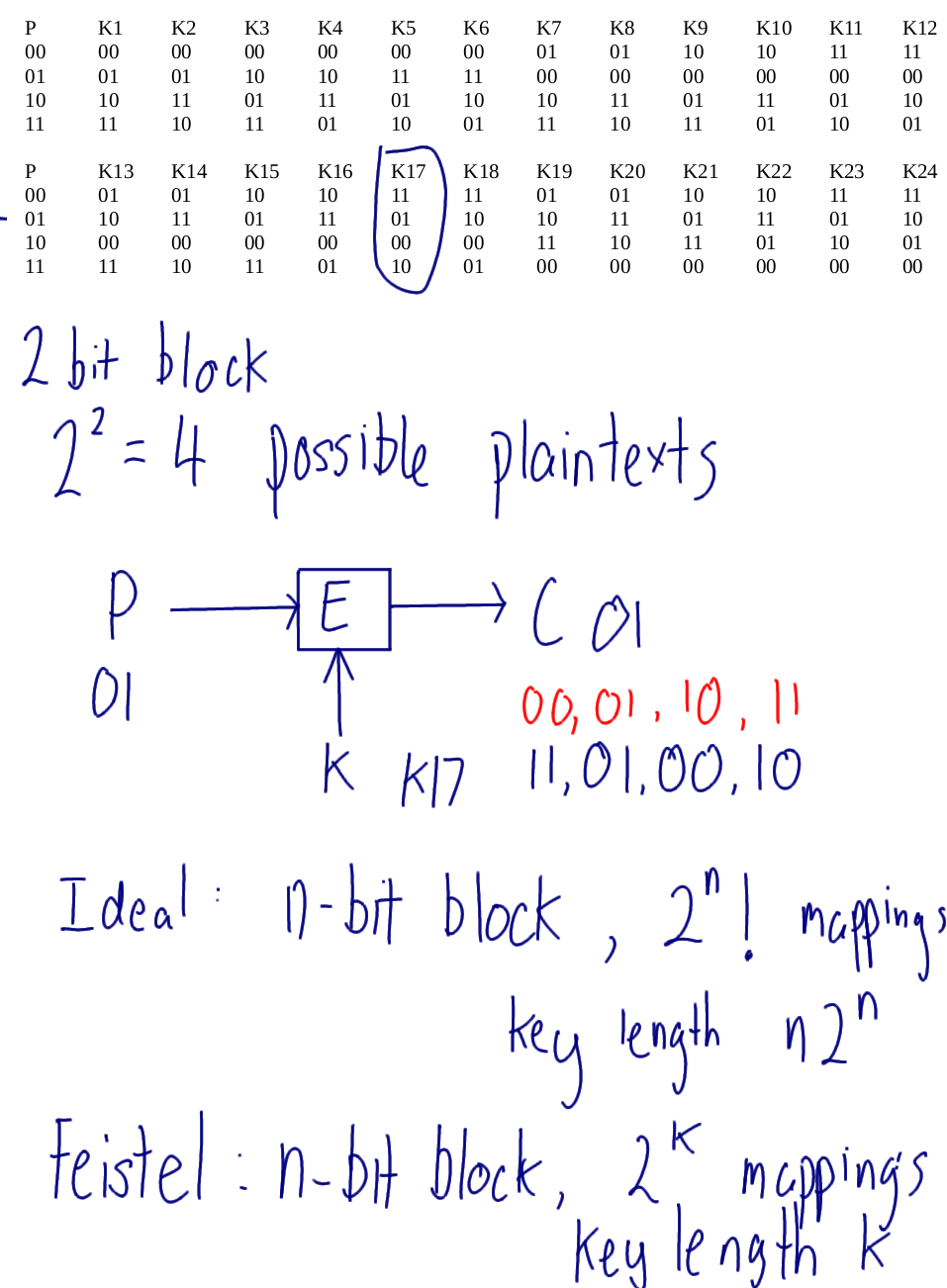

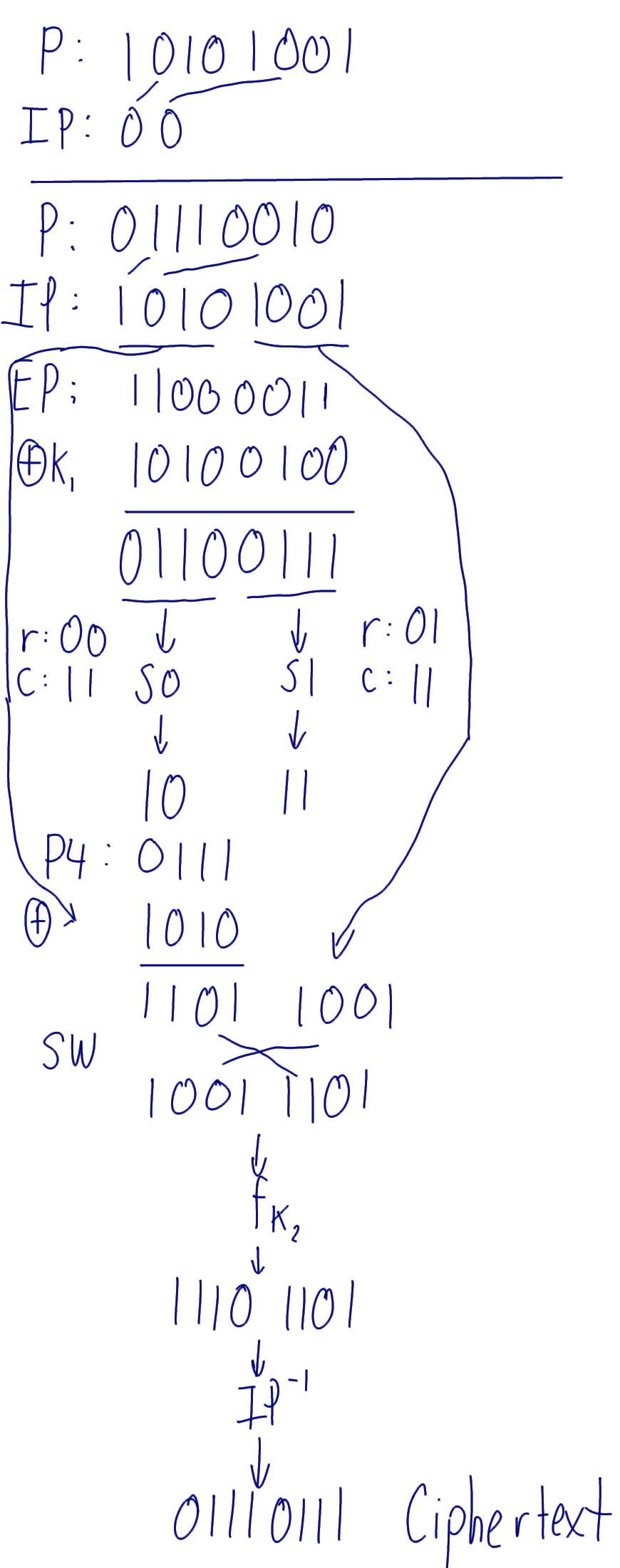

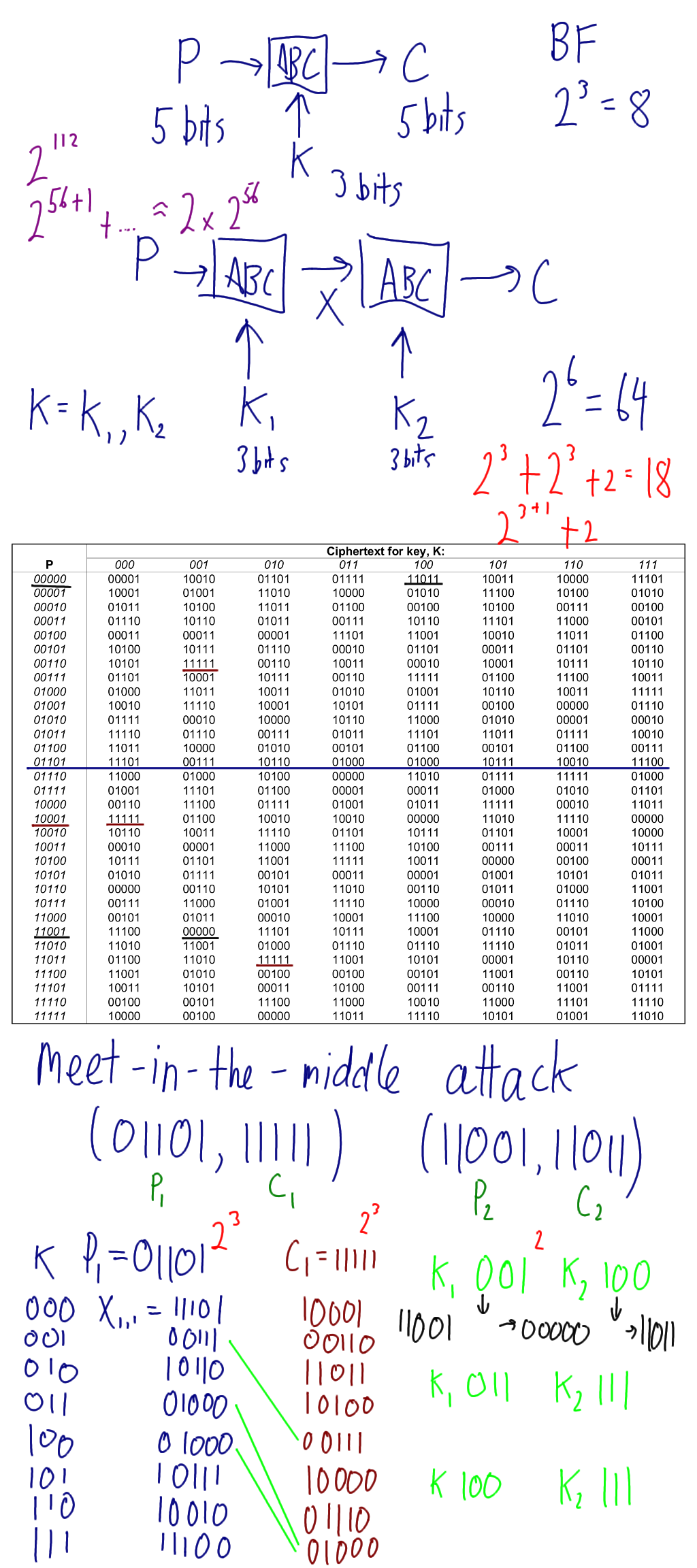

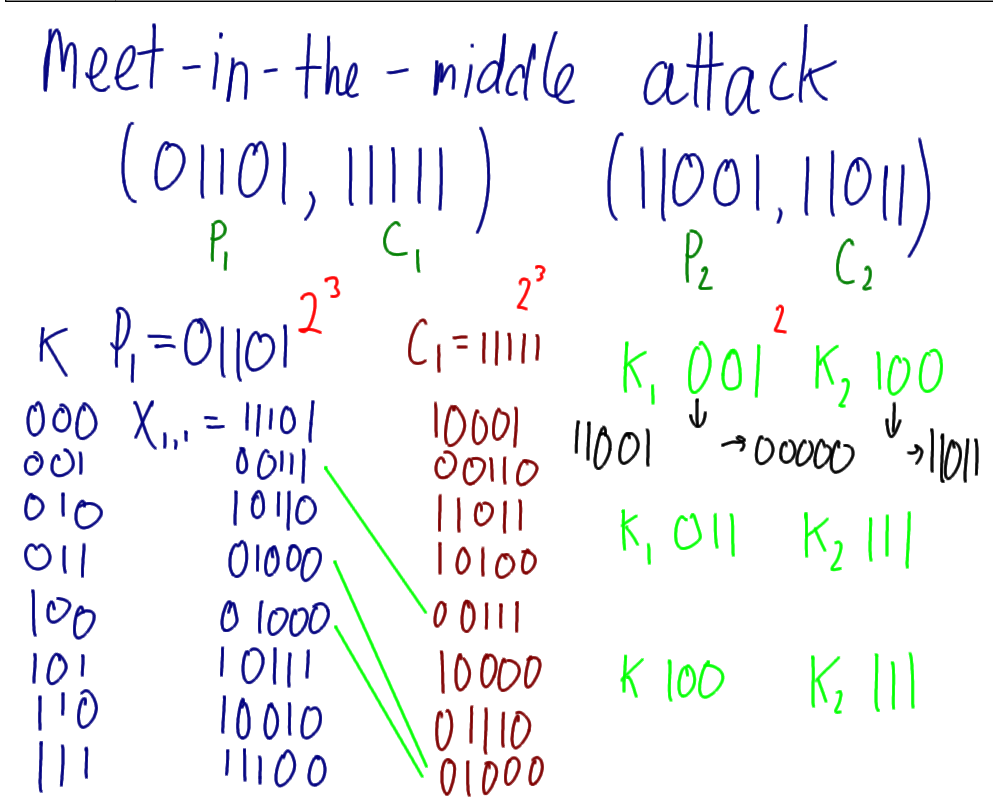

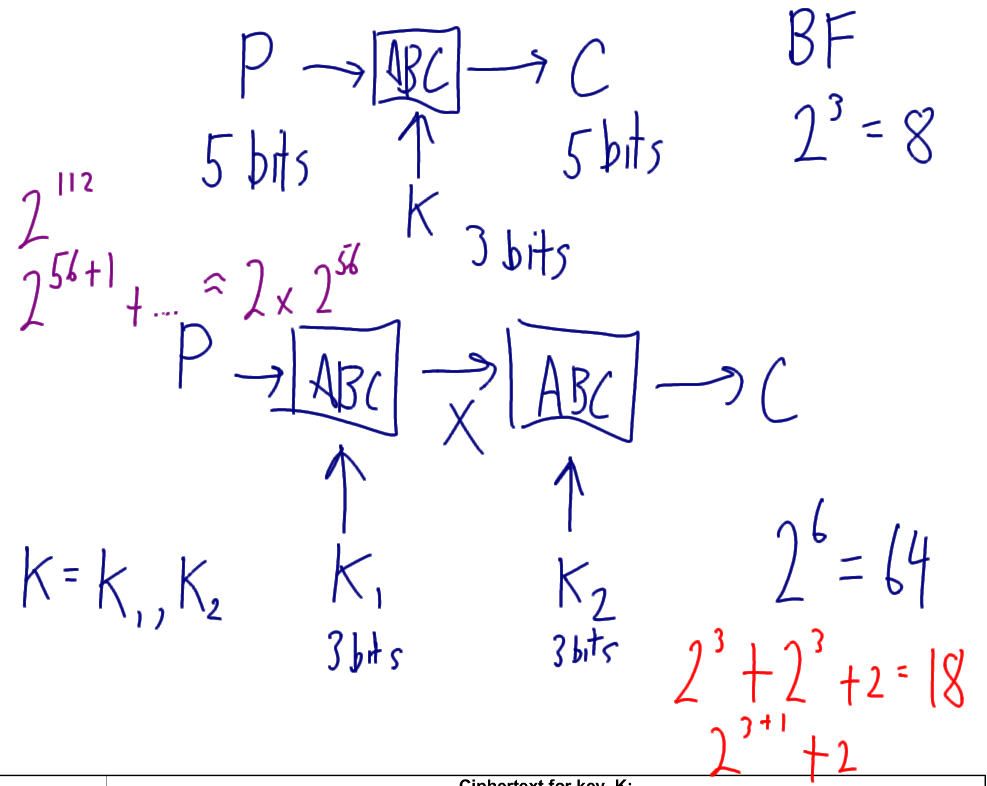

Ideal Block Cipher Example Simplified DES Example Single Encryption vs Double Encryption Meet-in-the-Middle Attack on Double Encryption Double Encryption and Meet-in-the-Middle with Demo Cipher
